Understanding Zinc-Rich Primers: A Detailed Overview

A zinc-rich primer serves as a crucial protective coating for steel and iron substrates. By containing a significant amount of zinc, these primers deliver galvanic protection. In simple terms, the zinc in the primer sacrifices itself by oxidizing before the underlying metal does, ensuring the coated material remains protected for a more extended period.


Distinguishing Between Various Zinc-Rich Primers

Different types of zinc-rich primers cater to varied needs. We can primarily categorize them into three:


Organic Zinc-Rich Primers:

Predominantly using organic resins like epoxy or polyurethane, these are commonly sought after.

Inorganic Zinc-Rich Primers:

Incorporating a silicate binder, they frequently outshine organic versions in offering galvanic protection.

Epoxy Zinc-Rich Primers:

A niche within organic primers, where epoxy stands as the primary binder.


For those dealing with zinc-coated steel, often referred to as galvanized steel, the epoxy zinc-rich primer emerges as a preferable choice. This preference is due to its impressive adhesion coupled with formidable corrosion resistance.


Differences from Other Primers

Although epoxy primers might contain zinc, not all are zinc-rich. Such primers, while offering excellent adhesion and some level of corrosion resistance, lack the added galvanic protection provided by the zinc-rich variants. When we look at red oxide primers, they might be cost-effective, but in terms of galvanic protection, zinc-rich primers take the lead.


Pitfalls of Zinc Paint

While zinc paint has numerous benefits, there are some concerns to note:

  • Aesthetically, they might not be everyone's first choice due to their rough or gritty appearance.
  • They don't always mesh well with all topcoats.
  • Acidic environments can be a challenge, potentially causing dissolution.
  • A thin application diminishes its effectiveness considerably.


Application and Maintenance Insights


Using a zinc-rich primer alone isn't always enough. To maximize UV protection and enhance its appearance while shielding the primer from environmental factors, a top coat becomes necessary. Also, when considering powder coating, direct application over a zinc-rich primer isn't advisable. The high temperatures inherent in powder coating might compromise the zinc layer's integrity.


Surface preparation remains paramount. While the temptation might exist to spray zinc primer over rust directly, it's vital to remove rust first to ensure optimum adhesion and performance. The drying time for zinc primers can vary, but many are touch dry in hours, with full curing taking anywhere from a day to several days.


The thickness of zinc primer application is pivotal for its performance and longevity. In English, the ideal thickness often depends on the specific product and the manufacturer's recommendations, as well as the specific requirements of the project. However, some general guidelines can be followed:


Dry Film Thickness (DFT):

For many zinc-rich primers, the recommended DFT (the thickness of the coating measured after it has dried or cured) ranges from 2.5 to 3.5 mils (or 65 to 90 microns). It's crucial to remember that this is a general range and can vary.


Wet Film Thickness (WFT):

The wet film thickness will always be greater than the dry film thickness due to the evaporation of solvents during the drying process. The exact WFT to achieve a desired DFT will be specified in the product's technical data sheet.


Achieving the Right Thickness:

Using a wet film thickness gauge right after application can help in ensuring you're in the correct range. After the primer dries, a dry film thickness gauge can provide accurate measurements. The method of application (spray, brush, or roller), the specific formulation of the primer, the environment (temperature and humidity), and the substrate's condition can all influence the final thickness of the applied primer. Applying the primer too thinly can reduce its effectiveness in providing galvanic protection. Conversely, applying it too thickly might result in issues like sagging, poor adhesion, or extended drying times.

Zinc-Rich Primer Installation for Industrial Spaces in Ontario


Interested in having Zinc-rich Primer installed professionally to increase the longevity of your space? Get in contact with our team to get a quote today!



Call Now

Addressing Rust

One of the most common challenges in maintaining and rehabilitating older structures is dealing with rust, especially when it affects the integrity of steel reinforcements or components. Over time, unchecked moisture infiltration can lead to oxidation of the steel, compromising the overall strength and longevity of the structure.


The recommended strategy for addressing this prevalent issue starts with a careful examination of the affected area. It's paramount to treat not just the visible signs of rust but to ensure that all corroded areas are thoroughly addressed to prevent future degradation.


The first step in this remediation process involves chipping away the surrounding concrete to expose the entirety of the rusted steel. This step is crucial because superficial treatments that only address surface rust without exposing the deeper layers are merely a temporary fix. Rust that remains embedded and untreated can quickly spread, nullifying any short-term efforts.


Once the rusted areas are fully exposed, the next crucial step is to remove the rust entirely. The most effective methods for this are sandblasting or using a wire wheel. Sandblasting, in particular, is a highly effective method, employing a stream of abrasive material to strip away rust, old paint, and other contaminants. The goal is to continue this rust removal process until the steel reflects a shiny and clean metal appearance. This ensures that all oxidized and weakened sections of the steel are eliminated, leaving behind a robust and reliable metal surface.


However, the exposed metal is susceptible to rapid re-oxidation if left untreated, especially in humid environments. Therefore, immediate treatment post-cleaning is crucial. The ideal solution in such cases is the application of a high-zinc content primer. For instance, there are top-quality primers available from reputable brands like Sherwin Williams, known for their rich zinc content. A testament to the primer's richness in zinc is its weight. With a gallon weighing approximately 14lbs, it's evident that the primer is laden with zinc, ensuring maximum protection.


Zinc, as an element, serves as a sacrificial layer. When exposed to environmental elements, zinc will corrode before the steel does, effectively extending the life of the structure and protecting against further rusting. The high density of zinc in the primer provides a robust protective shield for the newly cleaned steel, ensuring longevity and structural integrity.


In summary, effectively addressing rust in structural elements requires a systematic approach: thorough exposure of the affected area, complete rust removal, and immediate application of a high-quality, zinc-rich primer. Adopting this comprehensive method ensures not only the remediation of existing issues but also the prevention of future structural defects.


Venturing Beyond Zinc-Rich Primers

For bare metal, apart from zinc-rich primers, epoxy primers are also held in high regard. Regardless of choice, two coats typically offer optimal coverage. Before applying a primer, sanding the bare metal proves beneficial, fostering better adhesion. Then, we have 2K primers, which consist of two components, a base, and a hardener. These can be applied directly to metal, ensuring a durable finish. However, 2K primers usually stand superior to their 1K counterparts due to their chemical curing process, leading to better adhesion and corrosion resistance. If considering painting over a 2K primer, a light sanding beforehand ensures a smoother finish.


In essence, the term "2K" in primers signifies "two-component," pointing towards the dual components – a base and an activator – that need mixing before application, leading to a chemically-cured, resilient finish.


Our Recommended Zinc-Rich Primer Products

Sherwin-Williams Zinc Clad:

  • Renowned for its durable protection and good adherence. It's available in both organic and inorganic varieties, catering to different needs.

PPG Amercoat 68HS:

  • A high-solids, zinc-rich epoxy primer that's known for its corrosion protection, especially in marine environments.

International Paint (AkzoNobel) – Interzinc 52:

  • A two-component, zinc-rich epoxy primer that offers excellent protection in both maintenance and new construction scenarios.

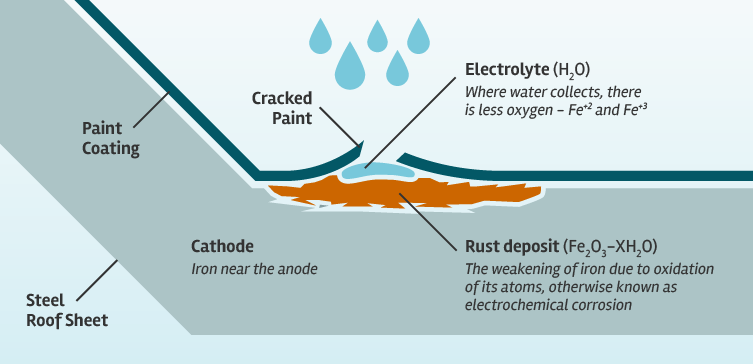

How metal oxidizes due to moisture as cathode reacted with electrolyte which is water  forming an electrochemical corrosion reaction
