Understanding Epoxy Resins: Best Conditions for Application

Mastering Epoxy Use: Temperature and Humidity Essentials

What is Epoxy?

Epoxy is a thermosetting resin, commonly used in coatings, adhesives, and composite materials due to its high strength, durability, and chemical resistance. The types of epoxy primarily include water-based, solid-based, and urethane, each with distinct properties and applications.

The Role of Temperature in Epoxy Application

Temperature plays a vital role in epoxy application, affecting not only its viscosity but also its curing time. Ideal temperature ranges vary based on the type of epoxy:

Water-Based Epoxy:

• Optimal application occurs between 60 to 85 degrees Fahrenheit (15 to 29 degrees Celsius).
• If the temperature is too low, the epoxy might not cure properly, leading to a soft or sticky finish. On the other hand, if the temperature is too high, the epoxy might cure too quickly, which could lead to bubbles or a "cobweb" effect due to overly fast evaporation.
• High humidity can cause blushing (a white, hazy, or cloudy appearance) due to moisture condensation on the epoxy surface. It could also lead to slower curing times.

Solid-Based Epoxy:

• Ideally applied between 70 to 85 degrees Fahrenheit (21 to 29 degrees Celsius).
• Similar to water-based epoxy, if the temperature is too low, solid-based epoxy may not cure fully, and the final product could be soft or sticky. High temperatures might cause it to cure too rapidly, leading to an uneven or bumpy finish.
• High humidity could result in blushing, where the epoxy appears cloudy or whitish. Additionally, the curing process might slow down significantly. This is similar to what happen to water-based epoxy.

Urethane Epoxy:

• The optimum application temperature is similar, between 70 to 85 degrees Fahrenheit (21 to 29 degrees Celsius).


The Role of Humidity in Epoxy Application

Humidity is a measure of the amount of water vapor present in the air. It's usually expressed as a percentage, with higher percentages indicating more moisture in the air.

Just as temperature influences epoxy curing, so does humidity. Humidity higher than 70% can lead to problems.

High humidity can slow down the curing process of epoxy resin. The increased moisture in the air can interfere with the reaction between the epoxy and the hardener, slowing it down and extending the time it takes for the epoxy to fully harden.

Perhaps one of the most common problems when working with epoxy in high humidity is blushing. This happens when moisture condenses on the surface of the curing epoxy, forming a waxy, semi-solid layer. This blushing not only affects the appearance of the epoxy, making it cloudy or hazy, but can also interfere with the adhesion of subsequent layers of epoxy or other coatings.

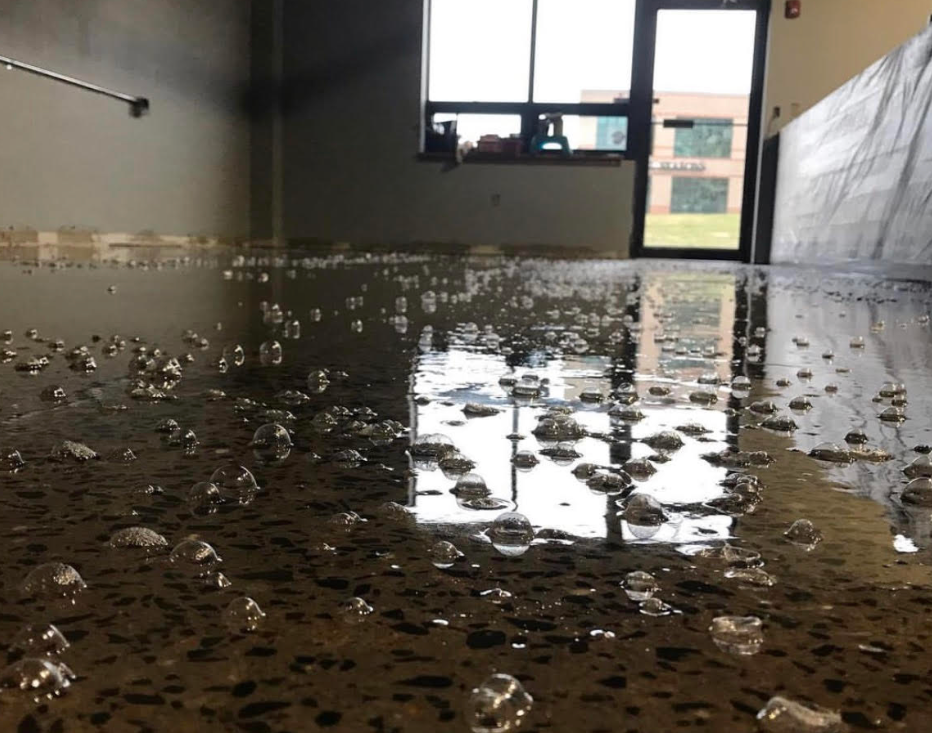

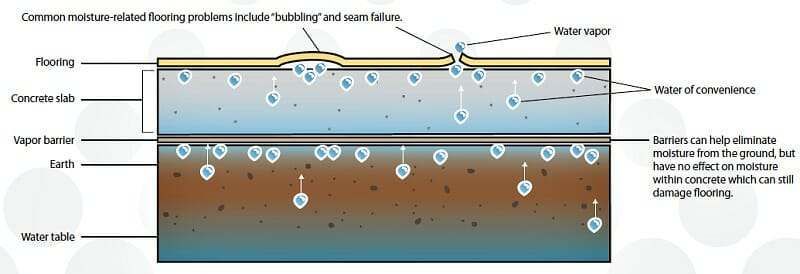

Another problem that can occur when applying epoxy in high humidity is bubbling. If the epoxy is applied to a surface that's cooler than the dew point, moisture can condense on the surface and get trapped under the epoxy, causing bubbles or fisheyes.

How to Control Humidity When Working with Epoxy Resin

Working in a controlled environment can help mitigate these problems. If possible, apply epoxy in a space where you can control the temperature and humidity. Dehumidifiers can help reduce the moisture level in the air, and heaters can raise the temperature to help lower relative humidity.

Using a moisture meter to measure the moisture content of the substrate can also help prevent problems. If the substrate is too damp, it may be necessary to dry it out before applying the epoxy.



Always remember that manufacturer's instructions may vary, so it's best to follow their specific guidelines regarding optimal humidity levels and other factors.

Troubleshooting Common Issues

Temperature or humidity issues can lead to a range of problems in your epoxy application. Here are some solutions and preventive measures:

• If the epoxy doesn't cure properly, it might be too cold. Ensure the temperature is within the recommended range.
• If the epoxy cures too quickly and bubbles form, it could be too hot. Try reducing the temperature.
• High humidity can cause cloudiness or blushing. Aim for a humidity level below 70%.
• Make sure the mixing ratio is consistent between the resin and the hardener. These need to be mixed in the exact ratio specified by the manufacturer. Deviating from this ratio could lead to improper curing.
• The pot life of epoxy is the amount of time you can work with the mixed epoxy before it begins to harden. Working with the epoxy beyond its pot life can result in a poor finish. Always take note of the pot life specified by the manufacturer and plan your work accordingly.
